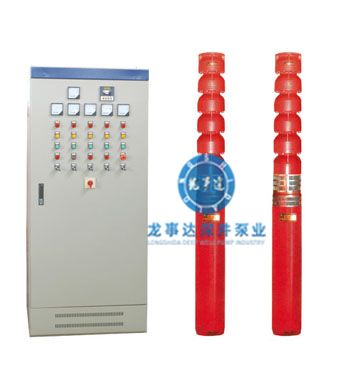

XBD-Q潜水消防泵组
浏览次数：
概述：
XBD-Q系列消防泵组系本公司所开创的潜水式消防泵，为国内首创，其技术达到国际先进水平。龙事达牌消防泵整体结构抗腐蚀，过流部件材料防锈性能强、瞬时启动能力强，产品安全可靠。通过消防控制设备定期自动巡检，关键时刻立即启动，瞬间达到所需的水量、压力。消防泵组配套的是潜水异步电动机，可长期浸在水中运行，不需建泵房，可以大大简化泵站的土建及建筑结构工程，减少安装面积，不影响小区绿化且超静音、无震动。本公司生产消防泵组比地面消防泵具有更高可靠性、是消防首选用泵。
型号意义：
例：X B D 10/ 40-Q
XBD 电机驱动消防泵组
10 泵的10倍额定出口压力1Mpa
40 额定流量 40L/s
Q 潜水式消防泵
产品用途：
XBD-Q系列消防泵组广泛与高层建筑和民用住宅楼群、宾馆及各种其他建筑的消防工程之用。
使用特点：
1、瞬时启动
针对消防泵特点，设计时提高了电机的启动力矩，从而缩短启动时间确保消防泵组瞬时启动。
2、可靠性高
龙事达消防泵是潜水式无吸程，进水口浸没于水中，没有底阀等吸上装置，因而不存在灌引水，工作更可靠。不锈钢泵轴、特殊耐麽水润滑橡胶轴承、不锈钢滤网等特出材料，因而抗蚀防锈性能优良，确保水泵长时间停机过流部件不会生锈卡死，满足消防突发用水的要求。
3、安全性高
龙事达消防泵配套潜水电动机，电机定子绕组采用耐水聚乙烯绝缘、尼龙护套多层结构的电磁线，并加以导流装置进行散热，因而更安全。
4、投资少
龙事达消防泵可长期浸没在消防水中，不需建泵房，可节省泵房所需的建设投资。
安装、试车注意事项
一、安装准备事项：
1．电机的绝缘电阻应大于50MΩ； 2．泵的电缆线应完好无损；
3．各紧固件应无松动现象，电机筒应完好无损； 4．导杆应紧固牢靠，否则会影响泵组的正常运行。
二、泵组的安装
1．泵组起吊应使用不锈钢链条，且一直置于泵组起吊螺钉上；
2．由于消防泵水压高，泵组不适应与藕合相配，泵组的出口应用金属软管或钢管硬性连接，与泵出口连接的管道长度须伸出水池盖板面，拆卸方便；
3．泵组与其匹配控制柜可靠接地；
4．泵组出口按规范应装软管止回阀等；
5．泵出口管道对地面应作支撑处理，以免造成泵组变形或损坏。
三、泵组的试车：
1．泵组调试时，如发现压力达不到规定要求，可能电机反转，应调换三相电线中任一相序即可，如压力还低且不稳定，应对泵组出口管道进行放气处理；
2．泵组运行时，应调节出口阀门，使运行时的出口压力达到额定要求，否则影响消防效果或致使泵组过载运行。
龙事达电动机消防泵组主要性能参数表一
|
序号 |
规格型号 |
流量(L/s) |
压力(MPa) |
转速(r/min) |
功率(kW) |
|
1 |
XBD4.0/5GJ-LSD |
5L/S |
0.4Mpa |
2940r/min |
5.5kw |
|
2 |
XBD5.5/5GJ-LSD |
5L/S |
0.55Mpa |
2940r/min |
7.5kw |
|
3 |
XBD6.7/5GJ-LSD |
5L/S |
0.67Mpa |
2940r/min |
7.5kw |
|
4 |
XBD7.2/5GJ-LSD |
5L/S |
0.72Mpa |
2940r/min |
7.5kw |
|
5 |
XBD8.0/5GJ-LSD |
5L/S |
0.8Mpa |
2940r/min |
11kw |
|
6 |
XBD9.3/5GJ-LSD |
5L/S |
0.93Mpa |
2940r/min |
11kw |
|
7 |
XBD10.5/5GJ-LSD |
5L/S |
1.04Mpa |
2940r/min |
15kw |
|
8 |
XBD4.0/10GJ-LSD |
10L/S |
0.4Mpa |
2940r/min |
7.5kw |
|
9 |
XBD5.0/10GJ-LSD |
10L/S |
0.5Mpa |
2940r/min |
11kw |
|
10 |
XBD6.5/10GJ-LSD |
10L/S |
0.65Mpa |
2940r/min |
15kw |
|
11 |
XBD8.0/10GJ-LSD |
10L/S |
0.8Mpa |
2940r/min |
18.5kw |
|
12 |
XBD9.1/10GJ-LSD |
10L/S |
0.91Mpa |
2940r/min |
18.5kw |
|
13 |
XBD10.5/10GJ-LSD |
10L/S |
1.04Mpa |
2940r/min |
22kw |
|
14 |
XBD3.6/15GJ-LSD |
15L/S |
0.36Mpa |
2940r/min |
11kw |
|
15 |
XBD4.0/15GJ-LSD |
15L/S |
0.40Mpa |
2940r/min |
11kw |
|
16 |
XBD4.8/15GJ-LSD |
15L/S |
0.48Mpa |
2940r/min |
15kw |
|
17 |
XBD5.0/15GJ-LSD |
15L/S |
0.50Mpa |
2940r/min |
15kw |
|
18 |
XBD6.0/15GJ-LSD |
15L/S |
0.60Mpa |
2940r/min |
18.5kw |
|
19 |
XBD7.2/15GJ-LSD |
15L/S |
0.72Mpa |
2940r/min |
22kw |
|
20 |
XBD8.4/15GJ-LSD |
15L/S |
0.84Mpa |
2940r/min |
30kw |
|
21 |
XBD9.6/15GJ-LSD |
15L/S |
0.96Mpa |
2940r/min |
30kw |
|
22 |
XBD10.5/15GJ-LSD |
15L/S |
1.05Mpa |
2940r/min |
30kw |
|
23 |
XBD3.5/20GJ-LSD |
20L/S |
0.35Mpa |
2940r/min |
15kw |
|
24 |
XBD4.6/20GJ-LSD |
20L/S |
0.46Mpa |
2940r/min |
15kw |
|
25 |
XBD5.0/20GJ-LSD |
20L/S |
0.5Mpa |
2940r/min |
18.5kw |
|
26 |
XBD5.8/20GJ-LSD |
20L/S |
0.58Mpa |
2940r/min |
22kw |
|
27 |
XBD6.2/20GJ-LSD |
20L/S |
0.62Mpa |
2940r/min |
22kw |
|
28 |
XBD7.5/20GJ-LSD |
20L/S |
0.75Mpa |
2940r/min |
30kw |
|
29 |
XBD8.5/20GJ-LSD |
20L/S |
0.85Mpa |
2940r/min |
30kw |
|
30 |
XBD9.5/20GJ-LSD |
20L/S |
0.95Mpa |
2940r/min |
30kw |
|
31 |
XBD10.5/20GJ-LSD |
20L/S |
1.04Mpa |
2940r/min |
45kw |
|
32 |
XBD4.0/25GJ-LSD |
25L/S |
0.4Mpa |
2940r/min |
15kw |
|
33 |
XBD5.0/25GJ-LSD |
25L/S |
0.5Mpa |
2940r/min |
22kw |
|
34 |
XBD6.0/25GJ-LSD |
25L/S |
0.6Mpa |
2940r/min |
30kw |
|
35 |
XBD7.0/25GJ-LSD |
25L/S |
0.7Mpa |
2940r/min |
37kw |
|
36 |
XBD8.0/25GJ-LSD |
25L/S |
0.80Mpa |
2940r/min |
37kw |
|
37 |
XBD8.5/25GJ-LSD |
25L/S |
0.85Mpa |
2940r/min |
45kw |
|
38 |
XBD9.0/25GJ-LSD |
25L/S |
0.90Mpa |
2940r/min |
45kw |
|
39 |
XBD10/25GJ-LSD |
25L/S |
1.00Mpa |
2940r/min |
45kw |
|
40 |
XBD3.4/30GJ-LSD |
30L/S |
0.34Mpa |
2940r/min |
18.5kw |
|
41 |
XBD4.1/30GJ-LSD |
30L/S |
0.41Mpa |
2940r/min |
22kw |
|
42 |
XBD4.5/30GJ-LSD |
30L/S |
0.45Mpa |
2940r/min |
30kw |
|
43 |
XBD5.5/30GJ-LSD |
30L/S |
0.55Mpa |
2940r/min |
30kw |
|
44 |
XBD6.0/30GJ-LSD |
30L/S |
0.60Mpa |
2940r/min |
30kw |
|
45 |
XBD6.9/30GJ-LSD |
30L/S |
0.69Mpa |
2940r/min |
37kw |
|
46 |
XBD7.5/30GJ-LSD |
30L/S |
0.75Mpa |
2940r/min |
37kw |
|
47 |
XBD8.1/30GJ-LSD |
30L/S |
0.81Mpa |
2940r/min |
45kw |
|
48 |
XBD9.0/30GJ-LSD |
30L/S |
0.90Mpa |
2940r/min |
45kw |
|
49 |
XBD3.0/35GJ-LSD |
35L/S |
0.30Mpa |
2940r/min |
18.5kw |
|
50 |
XBD3.9/35GJ-LSD |
35L/S |
0.39Mpa |
2940r/min |
22kw |
|
51 |
XBD4.8/35GJ-LSD |
35L/S |
0.48Mpa |
2940r/min |
30kw |
|
52 |
XBD5.2/35GJ-LSD |
35L/S |
0.52Mpa |
2940r/min |
30kw |
|
53 |
XBD6.0/35GJ-LSD |
35L/S |
0.60Mpa |
2940r/min |
37kw |
|
54 |
XBD6.7/35GJ-LSD |
35L/S |
0.67Mpa |
2940r/min |
37kw |
|
55 |
XBD7.5/35GJ-LSD |
35L/S |
0.75Mpa |
2940r/min |
45kw |
|
56 |
XBD8.2/35GJ-LSD |
35L/S |
0.82Mpa |
2940r/min |
45kw |
|
57 |
XBD4.0/40GJ-LSD |
40L/S |
0.40Mpa |
2940r/min |
30kw |
|
58 |
XBD4.6/40GJ-LSD |
40L/S |
0.46Mpa |
2940r/min |
30kw |
|
59 |
XBD6.0/40GJ-LSD |
40L/S |
0.60Mpa |
2940r/min |
37kw |
|
60 |
XBD6.8/40GJ-LSD |
40L/S |
0.68Mpa |
2940r/min |
45kw |
|
61 |
XBD7.0/40GJ-LSD |
40L/S |
0.70Mpa |
2940r/min |
45kw |
|
62 |
XBD8.0/40GJ-LSD |
40L/S |
0.80Mpa |
2940r/min |
45kw |
|
63 |
XBD3.2/45GJ-LSD |
45L/S |
0.32Mpa |
2940r/min |
30kw |
|
64 |
XBD4.5/45GJ-LSD |
45L/S |
0.45Mpa |
2940r/min |
37kw |
|
65 |
XBD5.5/45GJ-LSD |
45L/S |
0.55Mpa |
2940r/min |
45kw |
|
66 |
XBD6.0/45GJ-LSD |
45L/S |
0.60Mpa |
2940r/min |
45kw |
龙事达电动机消防泵组主要性能参数表二
|
序号 |
规格型号 |
流量(L/s) |
压力(MPa) |
转速(r/min) |
功率(kW) |
|
1 |
XBD11.4/5GJ-LSD |
5L/S |
1.14Mpa |
2940r/min |
15kw |
|
2 |
XBD12.5/5GJ-LSD |
5L/S |
1.25Mpa |
2940r/min |
15kw |
|
3 |
XBD13.5/5GJ-LSD |
5L/S |
1.35Mpa |
2940r/min |
15kw |
|
4 |
XBD14.5/5GJ-LSD |
5L/S |
1.45Mpa |
2940r/min |
18.5kw |
|
5 |
XBD15.6/5GJ-LSD |
5L/S |
1.56Mpa |
2940r/min |
18.5kw |
|
6 |
XBD11.7/10GJ-LSD |
10L/S |
1.17Mpa |
2940r/min |
22kw |
|
7 |
XBD13.0/10GJ-LSD |
10L/S |
1.30Mpa |
2940r/min |
22kw |
|
8 |
XBD14.3/10GJ-LSD |
10L/S |
1.43Mpa |
2940r/min |
30kw |
|
9 |
XBD16.0/10GJ-LSD |
10L/S |
1.60Mpa |
2940r/min |
30kw |
|
10 |
XBD11.0/15GJ-LSD |
15L/S |
1.10Mpa |
2940r/min |
30kw |
|
11 |
XBD12.0/15GJ-LSD |
15L/S |
1.20Mpa |
2940r/min |
30kw |
|
12 |
XBD13.0/15GJ-LSD |
15L/S |
1.30Mpa |
2940r/min |
37kw |
|
13 |
XBD14.0/15GJ-LSD |
15L/S |
1.40Mpa |
2940r/min |
37kw |
|
14 |
XBD16.0/15GJ-LSD |
15L/S |
1.60Mpa |
2940r/min |
45kw |
|
15 |
XBD11.5/20GJ-LSD |
20L/S |
1.15Mpa |
2940r/min |
45kw |
|
16 |
XBD13.8/20GJ-LSD |
20L/S |
1.38Mpa |
2940r/min |
45kw |
|
17 |
XBD14.5/20GJ-LSD |
20L/S |
1.45Mpa |
2940r/min |
55kw |
|
18 |
XBD16.3/20GJ-LSD |
20L/S |
1.63Mpa |
2940r/min |
55kw |
|
19 |
XBD11.6/25GJ-LSD |
25L/S |
1.16Mpa |
2940r/min |
55kw |
|
20 |
XBD14.0/25GJ-LSD |
25L/S |
1.40Mpa |
2940r/min |
55kw |
|
21 |
XBD16.0/25GJ-LSD |
25L/S |
1.60Mpa |
2940r/min |
75kw |
|
22 |
XBD10.2/30GJ-LSD |
30L/S |
1.02Mpa |
2940r/min |
55kw |
|
23 |
XBD11.9/30GJ-LSD |
30L/S |
1.19Mpa |
2940r/min |
75kw |
|
24 |
XBD12.5/30GJ-LSD |
30L/S |
1.25Mpa |
2940r/min |
75kw |
|
25 |
XBD13.6/30GJ-LSD |
30L/S |
1.36Mpa |
2940r/min |
75kw |
|
26 |
XBD16.0/30GJ-LSD |
30L/S |
1.60Mpa |
2940r/min |
90kw |
|
27 |
XBD9.5/35GJ-LSD |
35L/S |
0.95Mpa |
2940r/min |
55kw |
|
28 |
XBD10.3/35GJ-LSD |
35L/S |
1.03Mpa |
2940r/min |
75kw |
|
29 |
XBD11.1/35GJ-LSD |
35L/S |
1.11Mpa |
2940r/min |
75kw |
|
30 |
XBD12.8/35GJ-LSD |
35L/S |
1.28Mpa |
2940r/min |
75kw |
|
31 |
XBD13.5/35GJ-LSD |
35L/S |
1.35Mpa |
2940r/min |
90kw |
|
32 |
XBD15.0/35GJ-LSD |
35L/S |
1.50Mpa |
2940r/min |
90kw |
|
33 |
XBD9.1/40GJ-LSD |
40L/S |
0.91Mpa |
2940r/min |
75kw |
|
34 |
XBD10.3/40GJ-LSD |
40L/S |
1.03Mpa |
2940r/min |
75kw |
|
35 |
XBD11.5/40GJ-LSD |
40L/S |
1.15Mpa |
2940r/min |
75kw |
|
36 |
XBD12.8/40GJ-LSD |
40L/S |
1.28Mpa |
2940r/min |
90kw |
|
37 |
XBD14.0/40GJ-LSD |
40L/S |
1.40Mpa |
2940r/min |
90kw |
|
38 |
XBD15.8/40GJ-LSD |
40L/S |
1.58Mpa |
2940r/min |
110kw |
|
39 |
XBD6.6/45GJ-LSD |
45L/S |
0.66Mpa |
2940r/min |
45kw |
|
40 |
XBD7.7/45GJ-LSD |
45L/S |
0.77Mpa |
2940r/min |
55kw |
|
41 |
XBD8.8/45GJ-LSD |
45L/S |
0.88Mpa |
2940r/min |
75kw |
|
42 |
XBD9.9/45GJ-LSD |
45L/S |
0.99Mpa |
2940r/min |
75kw |
|
43 |
XBD11.0/45GJ-LSD |
45L/S |
1.10Mpa |
2940r/min |
90kw |
|
44 |
XBD12.0/45GJ-LSD |
45L/S |
1.20Mpa |
2940r/min |
90kw |
|
45 |
XBD13.0/45GJ-LSD |
45L/S |
1.30Mpa |
2940r/min |
110kw |
|
45 |
XBD3.6/50GJ-LSD |
50L/S |
0.36Mpa |
2940r/min |
30kw |
|
47 |
XBD4.8/50GJ-LSD |
50L/S |
0.48Mpa |
2940r/min |
37kw |
|
48 |
XBD6.0/50GJ-LSD |
50L/S |
0.60Mpa |
2940r/min |
45kw |
|
49 |
XBD7.2/50GJ-LSD |
50L/S |
0.72Mpa |
2940r/min |
55kw |
|
50 |
XBD8.4/50GJ-LSD |
50L/S |
0.84Mpa |
2940r/min |
75kw |
|
51 |
XBD9.6/50GJ-LSD |
50L/S |
0.96Mpa |
2940r/min |
75kw |
|
52 |
XBD10.8/50GJ-LSD |
50L/S |
1.08Mpa |
2940r/min |
90kw |
|
53 |
XBD12.0/50GJ-LSD |
50L/S |
1.20Mpa |
2940r/min |
90kw |
|
54 |
XBD13.2/50GJ-LSD |
50L/S |
1.32Mpa |
2940r/min |
110kw |
|
55 |
XBD4.4/55GJ-LSD |
55L/S |
0.44Mpa |
2940r/min |
37kw |
|
56 |
XBD6.5/55GJ-LSD |
55L/S |
0.65Mpa |
2940r/min |
55kw |
|
57 |
XBD8.8/55GJ-LSD |
55L/S |
0.88Mpa |
2940r/min |
75kw |
|
58 |
XBD11.0/55GJ-LSD |
55L/S |
1.10Mpa |
2940r/min |
90kw |
|
59 |
XBD13.0/55GJ-LSD |
55L/S |
1.30Mpa |
2940r/min |
110kw |
|
60 |
XBD4.0/60GJ-LSD |
60L/S |
0.40Mpa |
2940r/min |
45kw |
|
61 |
XBD5.4/60GJ-LSD |
60L/S |
0.54Mpa |
2940r/min |
55kw |
|
62 |
XBD6.7/60GJ-LSD |
60L/S |
0.67Mpa |
2940r/min |
55kw |
|
63 |
XBD8.1/60GJ-LSD |
60L/S |
0.81Mpa |
2940r/min |
75kw |
|
64 |
XBD9.5/60GJ-LSD |
60L/S |
0.95Mpa |
2940r/min |
90kw |
|
65 |
XBD10.8/60GJ-LSD |
60L/S |
1.08Mpa |
2940r/min |
110kw |
|
66 |
XBD12.2/60GJ-LSD |
60L/S |
1.22Mpa |
2940r/min |
110kw |
|
67 |
XBD4.5/65GJ-LSD |
65L/S |
0.45Mpa |
2940r/min |
45kw |
|
68 |
XBD6.8/65GJ-LSD |
65L/S |
0.68Mpa |
2940r/min |
75kw |
|
69 |
XBD9.0/65GJ-LSD |
65L/S |
0.90Mpa |
2940r/min |
90kw |
|
70 |
XBD11.5/65GJ-LSD |
65L/S |
1.15Mpa |
2940r/min |
110kw |
|
71 |
XBD4.8/70GJ-LSD |
70L/S |
0.48Mpa |
2940r/min |
55kw |
|
72 |
XBD6.4/70GJ-LSD |
70L/S |
0.64Mpa |
2940r/min |
75kw |
|
73 |
XBD8.0/70GJ-LSD |
70L/S |
0.80Mpa |
2940r/min |
90kw |
|
74 |
XBD9.6/70GJ-LSD |
70L/S |
0.96Mpa |
2940r/min |
110kw |
|
75 |
XBD4.0/75GJ-LSD |
75L/S |
0.40Mpa |
2940r/min |
55kw |
|
76 |
XBD5.0/75GJ-LSD |
75L/S |
0.50Mpa |
2940r/min |
75kw |
|
77 |
XBD7.0/75GJ-LSD |
75L/S |
0.70Mpa |
2940r/min |
90kw |
|
78 |
XBD8.0/75GJ-LSD |
75L/S |
0.80Mpa |
2940r/min |
110kw |
|
79 |
XBD4.5/80GJ-LSD |
80L/S |
0.45Mpa |
2940r/min |
75kw |
|
80 |
XBD6.0/80GJ-LSD |
80L/S |
0.60Mpa |
2940r/min |
90kw |
|
81 |
XBD7.5/80GJ-LSD |
80L/S |
0.75Mpa |
2940r/min |
110kw |
|
82 |
XBD3.0/90GJ-LSD |
90L/S |
0.30Mpa |
2940r/min |
45kw |
|
83 |
XBD4.0/90GJ-LSD |
90L/S |
0.40Mpa |
2940r/min |
75kw |
|
84 |
XBD5.0/90GJ-LSD |
90L/S |
0.50Mpa |
2940r/min |
90kw |
|
85 |
XBD6.0/90GJ-LSD |
90L/S |
0.90Mpa |
2940r/min |
90kw |
|
86 |
XBD7.0/90GJ-LSD |
90L/S |
0.70Mpa |
2940r/min |
110kw |
|
87 |
XBD8.5/90GJ-LSD |
90L/S |
0.85Mpa |
2940r/min |
110kw |
|
88 |
XBD3.2/100GJ-LSD |
100L/S |
0.32Mpa |
2940r/min |
55kw |
|
89 |
XBD4.8/100GJ-LSD |
100L/S |
0.48Mpa |
2940r/min |
75kw |
|
90 |
XBD5.5/100GJ-LSD |
100L/S |
0.55Mpa |
2940r/min |
90kw |
|
91 |
XBD6.5/100GJ-LSD |
100L/S |
0.65Mpa |
2940r/min |
110kw |
龙事达深井泵,喷泉泵,井用潜水泵专业生产厂家 http://www.wzlsd.com
龙事达深井泵,喷泉泵,井用潜水泵专业生产厂家 http://www.wzlsd.com
